Binary Search Tree

A detailed yet simple explanation of the Binary Search Tree (BST) data structure.

What is a Binary Search Tree?

A Binary Search Tree (BST) is a special type of Binary Tree where the nodes are arranged in a specific order:

  • The left child of a node contains values smaller than the node’s value.
  • The right child of a node contains values greater than the node’s value.

This ordering property allows for efficient searching, insertion, and deletion operations. It is like a "sorted" Binary Tree, making it easy to search for values by comparing each node’s value and moving left or right based on whether the target value is smaller or larger.

How a Binary Search Tree Works

The key to understanding a Binary Search Tree is the ordering rule:

  • At each node, I compare the target value with the node’s value.
    • If the target is smaller, I move to the left child.
    • If the target is larger, I move to the right child.

This continues recursively until I find the target value or reach a leaf node (a node with no children). If the value is not found, I know it doesn’t exist in the tree.

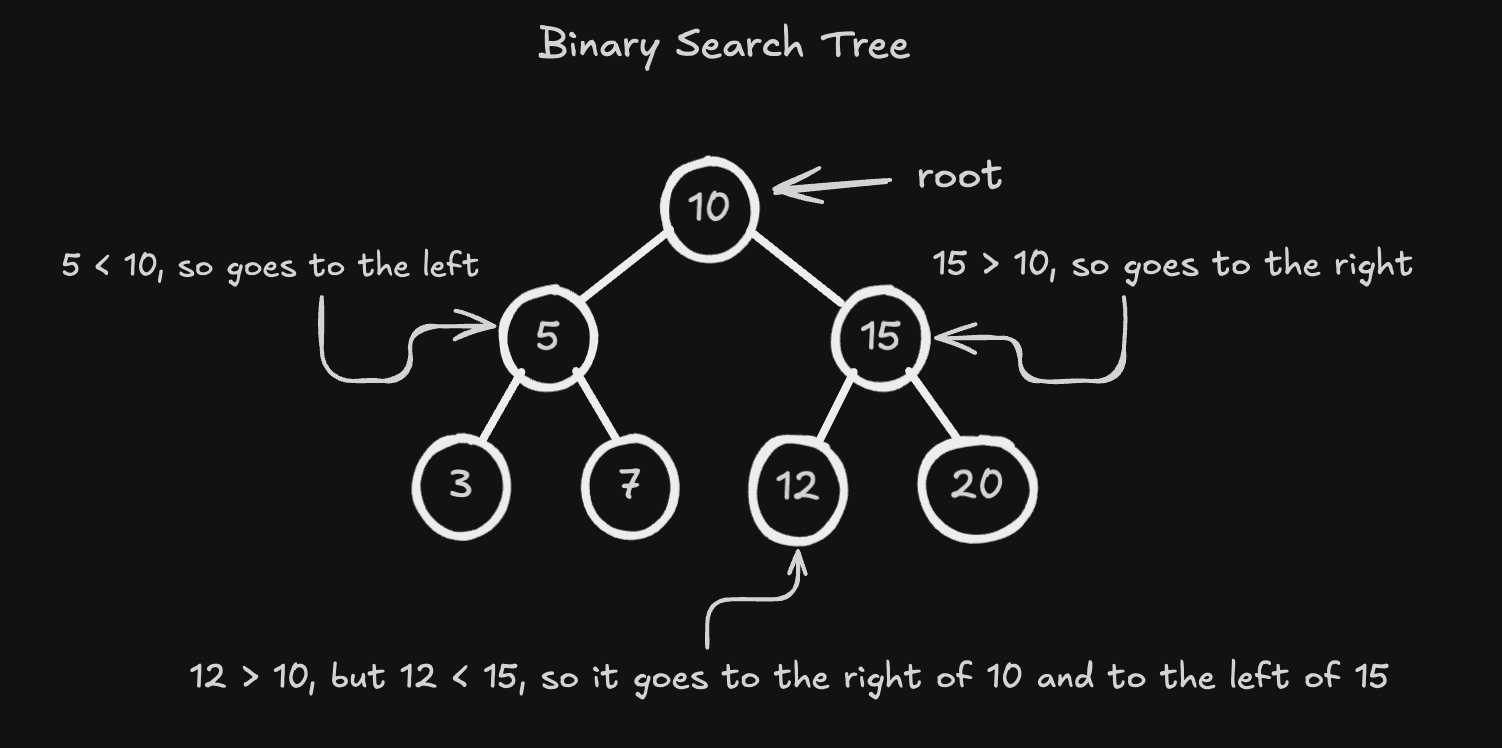

Here’s an example of a simple Binary Search Tree:

  • The root node is 10.
  • 5 is less than 10, so it goes to the left.
  • 15 is greater than 10, so it goes to the right.
  • The same comparison applies recursively for each node.

Operations on a Binary Search Tree

Here are the key operations and their time complexities in a Binary Search Tree:

  1. Insertion: Add a new node while maintaining BST property

    • Average Case: O(log n) for balanced trees
    • Worst Case: O(n) for skewed trees

  2. Searching: Find a specific value

    • Average Case: O(log n) for balanced trees
    • Worst Case: O(n) for skewed trees

  3. Deletion: Remove a node while maintaining BST property

    • Average Case: O(log n) for balanced trees
    • Worst Case: O(n) for skewed trees

  4. Traversal: Visit all nodes in specific order

    • In-order, Pre-order, Post-order: O(n)

  5. Finding Minimum/Maximum:

    • Time Complexity: O(h) where h is height
    • Best Case (balanced): O(log n)
    • Worst Case (skewed): O(n)

  6. Finding Height: Calculate number of levels

    • Time Complexity: O(n)
    • Space Complexity: O(h) for recursive approach

Note: The efficiency of BST operations heavily depends on the tree's balance. A balanced BST performs significantly better than a skewed one.

Insertion in a Binary Search Tree

When inserting a node, I follow these steps:

  • Start at the root and compare the value to be inserted with the current node.
  • If the value is smaller, move left; if larger, move right.
  • Repeat this process recursively until I find an empty spot (null) where the new node can be inserted.

Deletion in a Binary Search Tree

When deleting a node, there are three possible cases:

  1. Node has no children: Simply remove the node.
  2. Node has one child: Replace the node with its child.
  3. Node has two children: Find the in-order successor (the smallest value node in the right subtree) or in-order predecessor (the largest value node in the left subtree), replace the node with that value, and then delete the successor or predecessor.

Code Examples

Let’s look at how I can implement basic operations like insertion and in-order traversal in C++, Python, and Java.

#include <iostream>
using namespace std;

class Node {
public:
    int data;
    Node* left;
    Node* right;

    Node(int value) {
        data = value;
        left = nullptr;
        right = nullptr;
    }
};

class BinarySearchTree {
public:
    Node* root;

    BinarySearchTree() {
        root = nullptr;
    }

    // Insert a node into the binary search tree
    void insert(int value) {
        root = insertRec(root, value);
    }

    // Recursive function to insert a node
    Node* insertRec(Node* root, int value) {
        if (root == nullptr) {
            return new Node(value);
        }
        if (value < root->data) {
            root->left = insertRec(root->left, value);
        } else {
            root->right = insertRec(root->right, value);
        }
        return root;
    }

    // In-order traversal of the tree
    void inOrder() {
        inOrderRec(root);
    }

    void inOrderRec(Node* root) {
        if (root != nullptr) {
            inOrderRec(root->left);
            cout << root->data << " ";
            inOrderRec(root->right);
        }
    }
};

int main() {
    BinarySearchTree tree;
    tree.insert(10);
    tree.insert(5);
    tree.insert(15);
    tree.insert(3);
    tree.insert(7);

    cout << "In-order traversal: ";
    tree.inOrder(); // Should print 3 5 7 10 15
    cout << endl;

    return 0;
}
